High Frequency Electromagnetic IGBT Induction Heating Equipment for Brazing
Brief introduction of high frequency electromagnetic IGBT induction heating equipment for brazing:

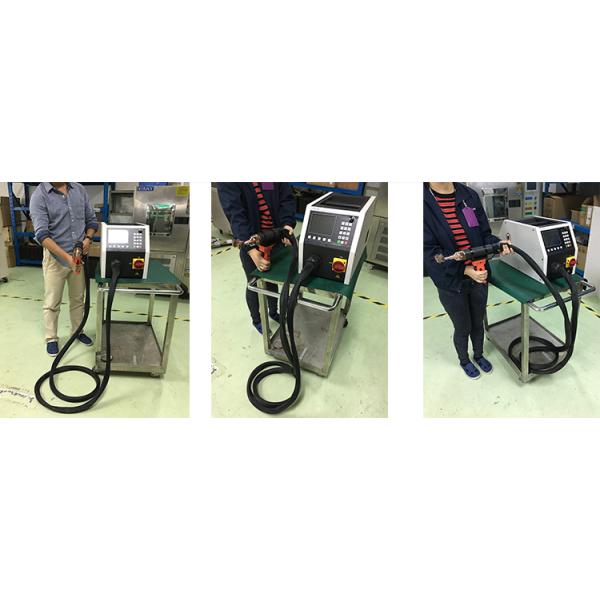

Canroon is China leading manufacturer of induction heating machine, CR2100 series is our widely popular both in China and oversea countries, digital control, modular design, LED display panel, HHT, detachable inductor, soft induction cable, water cooling system,
Application details of high frequency electromagnetic IGBT induction heating equipment for brazing:
Materials:
All metal materials including iron, copper, zinc, tin, aluminum, silver, stainless steel, titanium, nickle, etc.
Applications:
Brazing, Hardening, Annealing, Straightening, Shrink Fitting, Bolt Untighten, Paint/Coating Removal, etc.
Workpieces:
<> Electric motor: short circuit ring, flip ring, armature winding, flat copper wire, etc.
<> Heat exchanger: copper tube;
<> Automobile die;
<> Crank shaft;
<> Oil&gas pipe.
see the following detailed application of induction brazing for copper wire, heat exchanger, rotor coil, rotor bar, short circuit ring, etc
Following is induction brazing of brass bar with Cu-Ag alloy as the welding solder to make slip ring for wide applications.
Technical Parameters of high frequency electromagnetic IGBT induction heating equipment for brazing:
| Model | Rated input voltage & frequency | Rated input power | Rated input current | Output frequency | Cooling water pressure / flow rate | Dimension |
| CR2100-010B-14TW1 | 3-phase
/400V
(±20%)
50/60Hz | 10KVA | 15A | 10~40KHZ | 4~6 bar ≥12L/min | L: 581mm W: 283mm H: 334mm |
| CR2100-015B-14TW1 | 15KVA | 22A |
| CR2100-020B-14TW1 | 20KVA | 30A |
| CR2100-025B-14TW1 | 25KVA | 37A | 4~6 bar ≥19L/min |
| CR2100-030B-14TW1 | 30KVA | 45A |
| CR2100-035B-14TW1 | 35KVA | 53A |
| CR2100-040B-14TW1 | 40KVA | 60A |
| CR2100-050B-14TW1 | 50KVA | 75A |
Product features:
1. High efficient: thermoelectric conversion efficieny: >85%;
2. Enviromental friendly: zero pollution, zero discharge;
3. Intelligent: PID temperature closed-loop control, precise temperature control;
4. Wide application: for all metal wiredrawing products, including metal or alloy such as copper, iron, zinc, tin, aluminum, silver, stainless steel, titanium, nickel.
5. Operation interface: humanized MMI, chinese/ English available;
6. Multiple control interfaces: Heating process can be controlled accurately by feedback signal sent to the microcontroller from remote control unit; support 0-10v, 4-20mA analog signal control; support RS-485 communication;
7. Automation integration: Quickly and easily integrated into automated production lines;
8. Multiple heating modes: constant power mode, Time VS Power heating mode; Multi-segment heating mode;
